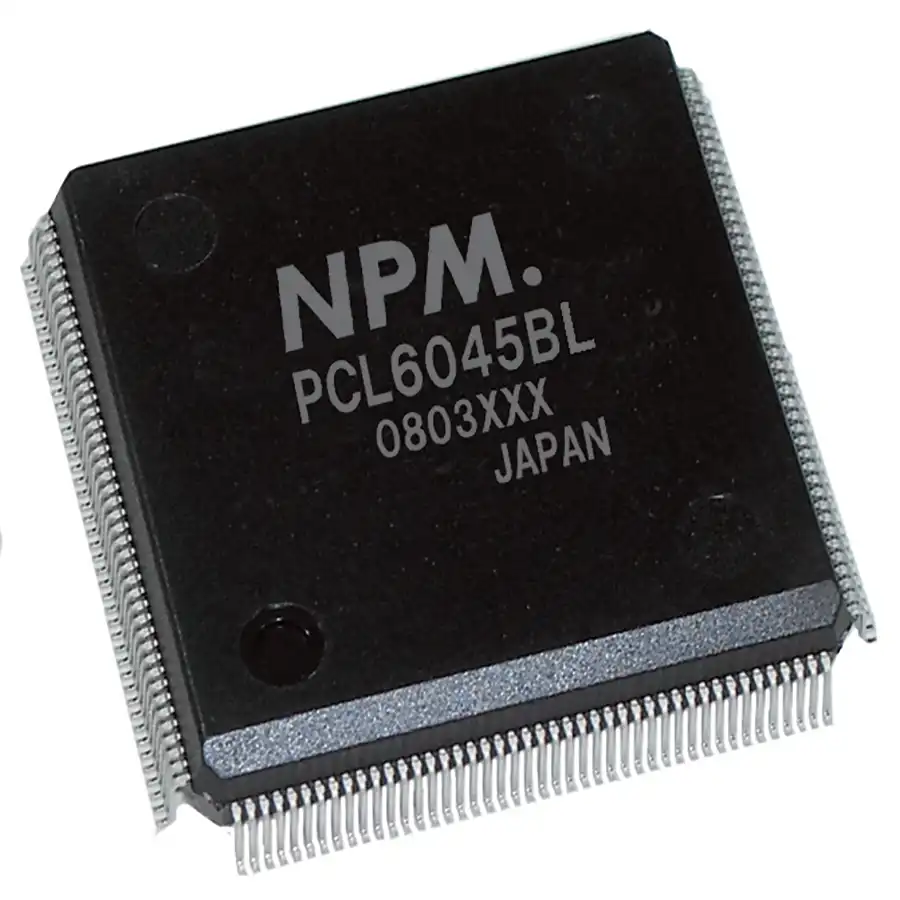

PCL6045BL Chip Level Controller

PCL6045BL Chip Level Controller

High Performance Programmable Pulse Generator Chip Technology

The Nippon Pulse PCL6000 series features an arsenal of advanced functions that enable the user to easily configure even the most complicated motion control systems. This pulse generator ASIC is designed to contend with almost every challenge that could arise in complex motion systems. The PCL6045BL is a 4-axis configuration in a compact 176-pin QFP.

Request Quote
Contact Us

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • RoHS
    Yes
  • Axis Count
    4
  • Maximum Output Frequency (pps)
    6.5M
  • Package Type
    176-pin QFP
  • Interpolation Option
    Linear, Cicular, Spiral/Helical,Continuous
  • Power Supply Voltage
    3.3 Vdc +/-10%
  • Encoder Input
    A, B, and Index per axis
  • CPU Interface
    8/16 bit Bus
  • Chip Design
    CMOS
  • Speed Multiplicaion Rate
    0.1x to 100x
  • Acceleration Rate
    1 to 65535 (16 bit)
  • Deceleration Rate
    1 to 65535 (16 bit)
  • Position Pulse Range
    -134,217,728 to +134,217,727 (28 bit)
  • Ramp Down Range
    0 - 16,777,215 pulses
  • Mold Section Size
    24.0 x 24.0 mm
