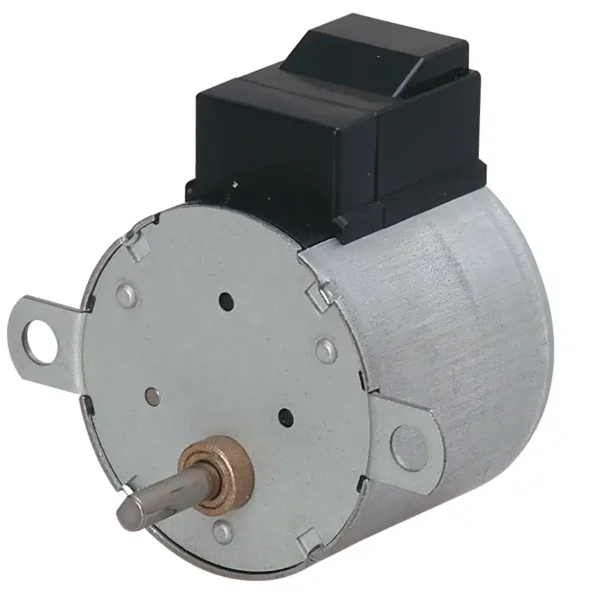

PFCU30-24V Rotary Tin Can Stepper Motor

Tin-Can Stepper Motor Technology

The Nippon Pulse PFCU series combines a tin can stepper motor with an integral gear set to provide high torque in a compact package. Available in three motor sizes, 20mm, 225mm, and 30mm diameter. Each size is offered with various combinations of windings and gear ratios. Each model includes integrated motor connectors for easy installation.

“Nippon Pulse is the partner we’ve been looking for. They delivered the custom linear motor solution that was the right fit for our application. There’s no question... they are experts in precision motion.”
— US Manufacturer

Specification Overview

  • Phase Resistance (Ω +/-7%@20°C )
    100
  • Weight (g)
    75
  • Phases
    2
  • Step Accuracy
    +/-5%
  • Insulation Class
    E
  • Operating Ambient Temp
    -10°C to +50°C
  • Operating Rel Humidity
    20% - 85% (non-condensing)
  • Storage Ambient Temp
    -30°C to +80°C
  • Duty
    Continuous
  • RoHS
    Yes
  • Rated Voltage (VDC)
    6.9
  • Rated Current (mAmps/Phase)
    230
  • Phase Inductance (mH +/-20%)
    26
  • Magnet Material
    Ferrite Anisotropic
  • Stack
    Standard
  • Bipolar
    Yes
  • Coil Winding
    Bipolar
  • Step Angle Degrees
    1.8°
  • Resolution Steps/Rev
    200
  • Starting Pulse Rate (pps)
    365
  • Slewing Pulse Rate (pps)
    450
  • Holding Torque (mNm +/-12%)
    100

3D CAD Drawing Download
